Parts List

• 3D printed case
• 3D printed camera bracket
• 3D printed lid


• Printed circuit board (Gerber files)


• MPU6050 gyro board
• Power switch board
• HS-425BB servo
• 900mAh 7.4V 2S LIPO battery
• 2S LIPO battery balance charger


• ATMEGA328P microcontroller
• 28 pin dip socket
• 16MHz ceramic resonator
• 3mm red led
• push button
• 5V regulator
• 100uF electrolytic capacitor
• .1uF ceramic disc capacitor
• 330, 1.2K, 10K resistors
• .1" right angle headers
• .1" straight headers


• JST-XH 2S LIPO battery balance connector cables
• JR/Hitec/Futaba servo cables


• #2x7/16" socket head servo screws (for servo)
• #2x3/16" button head screws (for pc board)
• #2x3/8" button head screws (for rear cover)
• 1/4-20 x 2" nylon screw (for camera mount)
• 1/4-20 nylon nut (for camera mount)


• 1-3/16" x 1-1/16" x 1/16" #26 o-ring (for camera retainer)
• 8mm disk bubble spirit level
• 3/32" cork sheeting (for anti-vibration pads and disks)

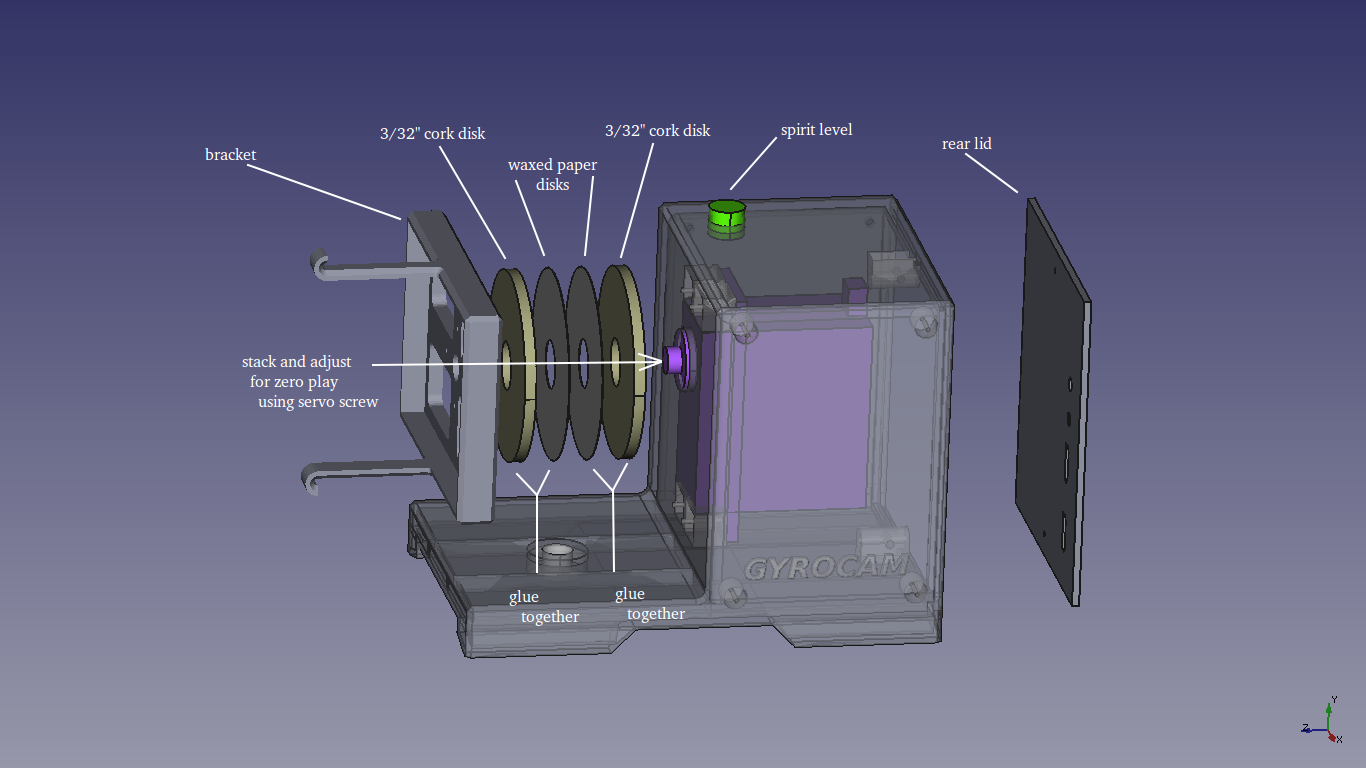

Exploded View

Assembly Notes

• As received from the 3D printer, the #2 screw holes will be slightly undersized. Use a hand drill and .067" bit to finish them out.


• Screwdriver side-access holes are provided for installing the printed circuit board.


• Optional: if you notice video blur due to camera vibration, make a pair of cork disks (40mm OD, 12mm ID, 3/32" thick), face them with waxed paper using rubber cement, and stack them between the camera bracket and servo, as shown above. Tighten the servo screw until all the play disappears, but not so tight that friction causes the servo to buzz or strain excessively.


• Cork sheeting can also be used as a pad under the feet of the unit, to further reduce vibration.
