3D Printed Case

After building a number of plywood enclosures, I decided to design a case that could be 3D-printed out of plastic.
It's available here, along with the STL file if you wish to print it yourself. Or you can have a look at the FreeCAD design file.

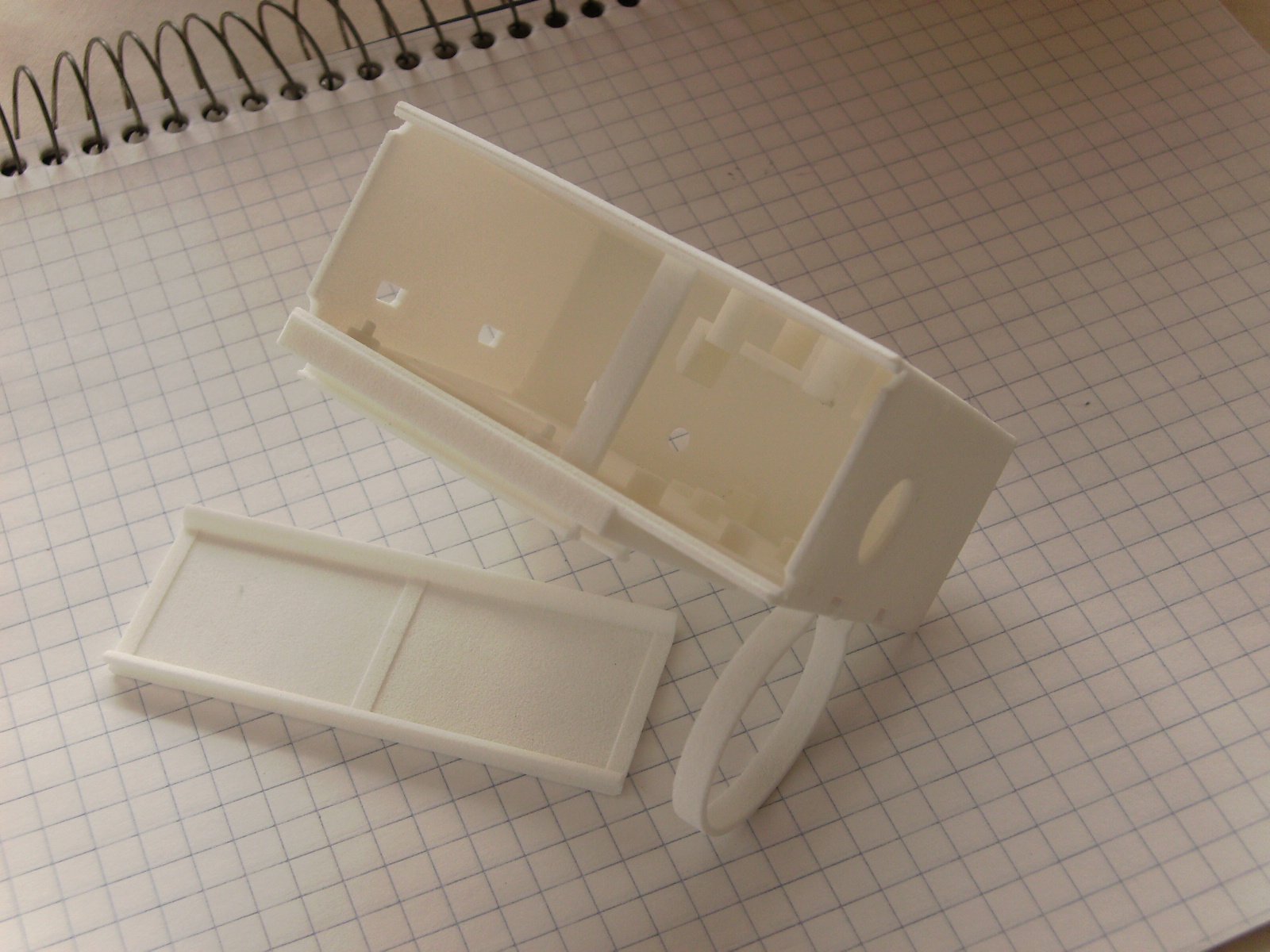

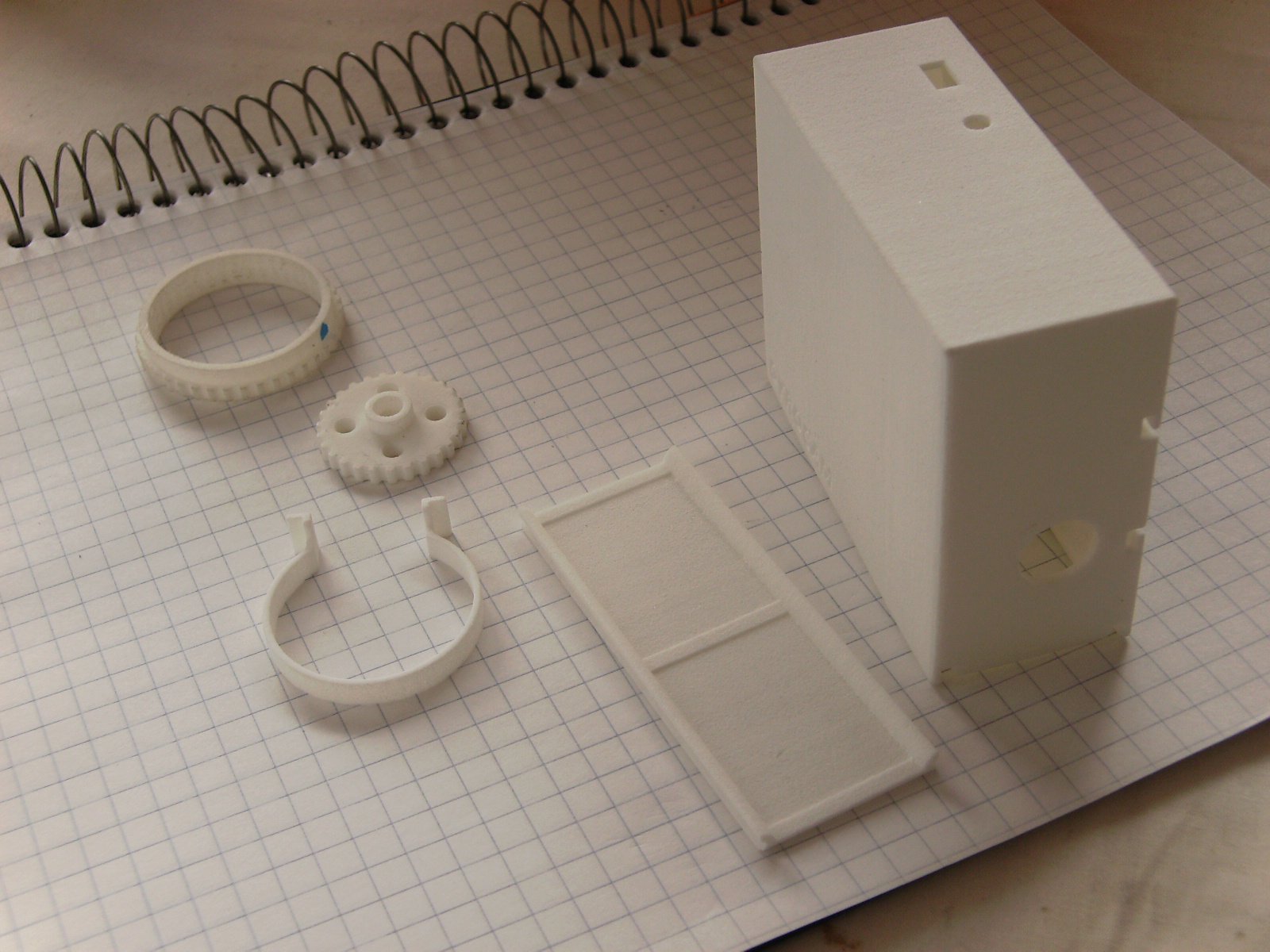

Here are the printed parts I received from Shapeways:

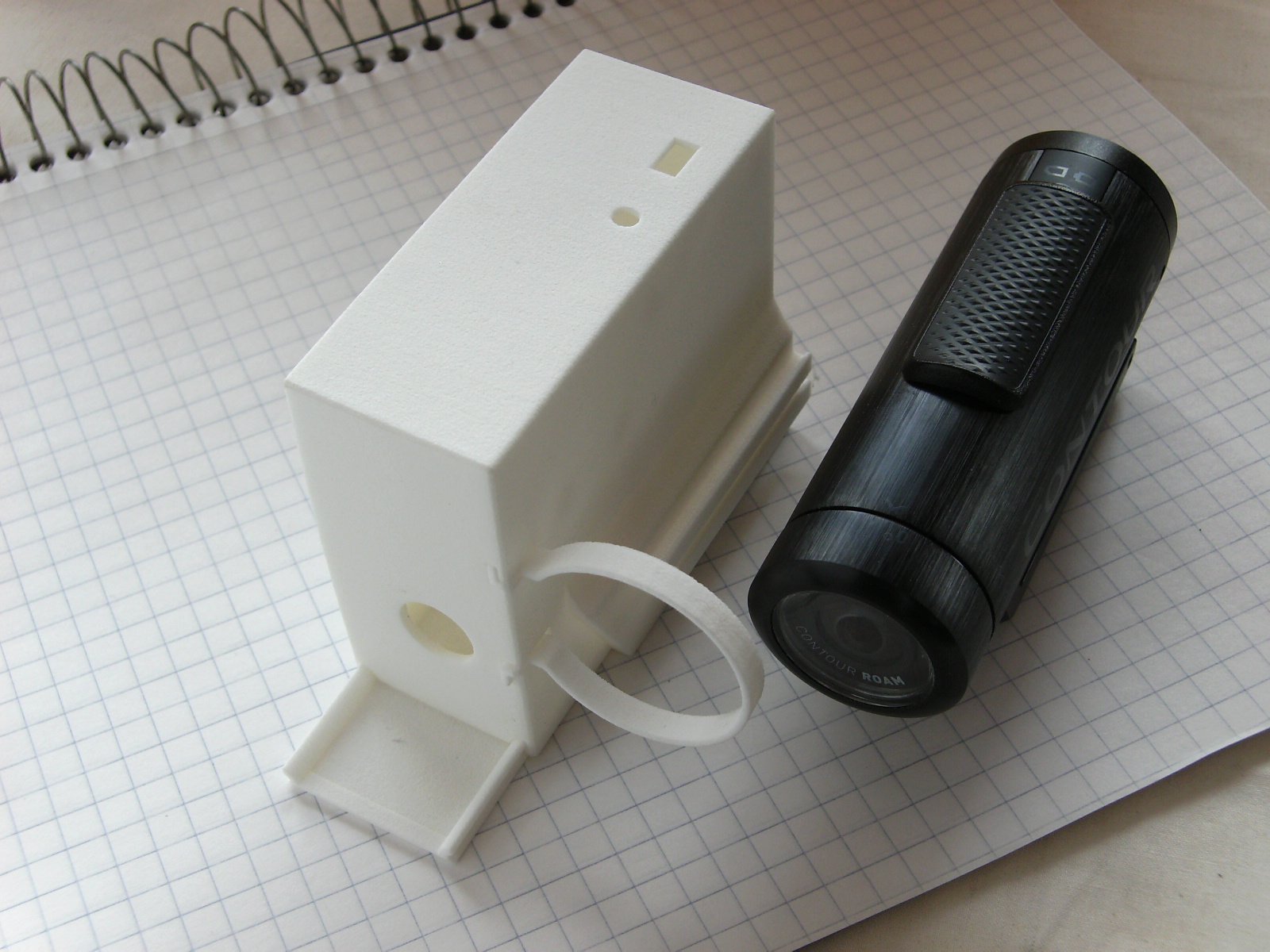

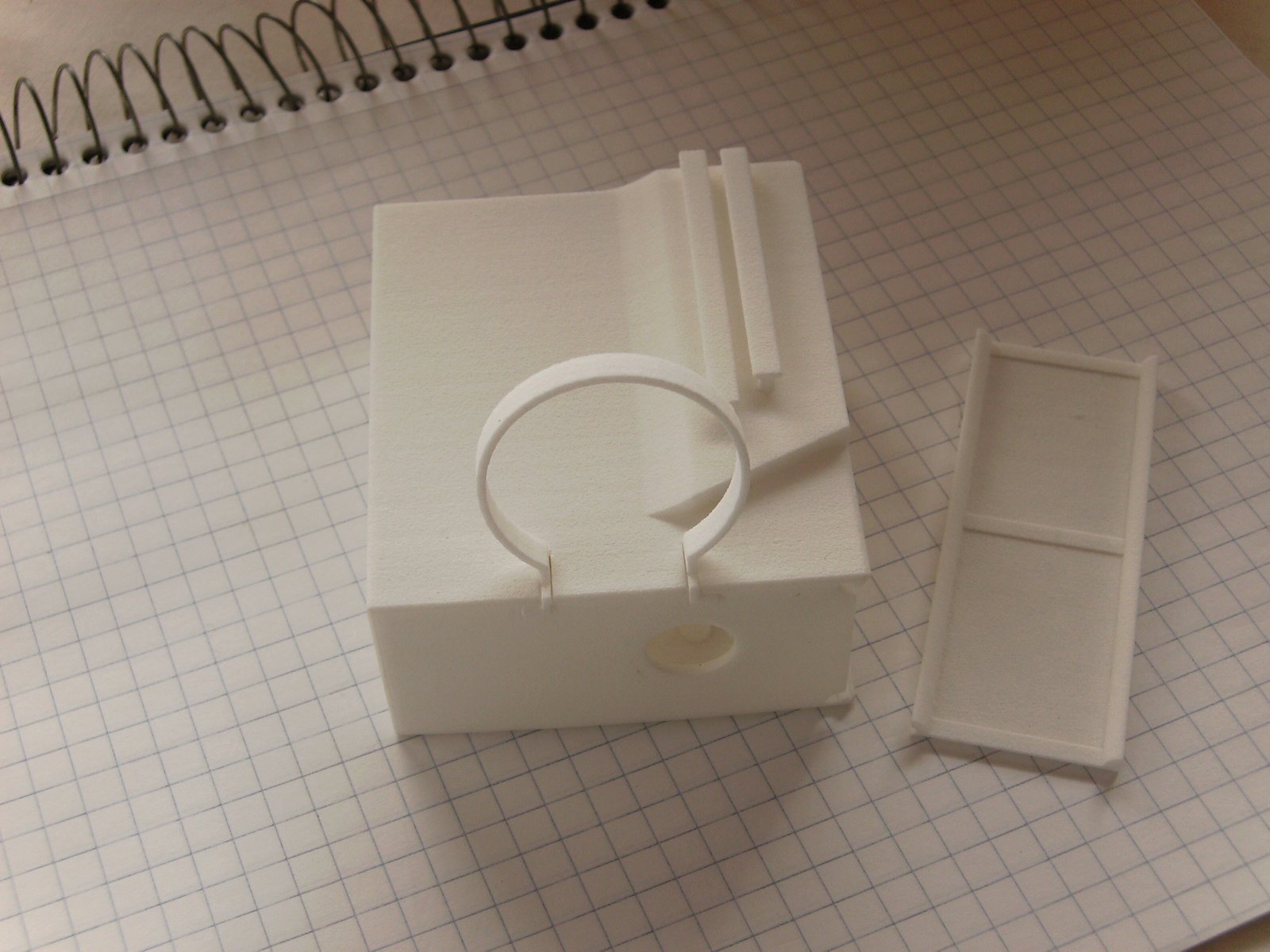

The case is designed to be assembled without tools. Both the camera strap and bottom lid slide into matching slots:

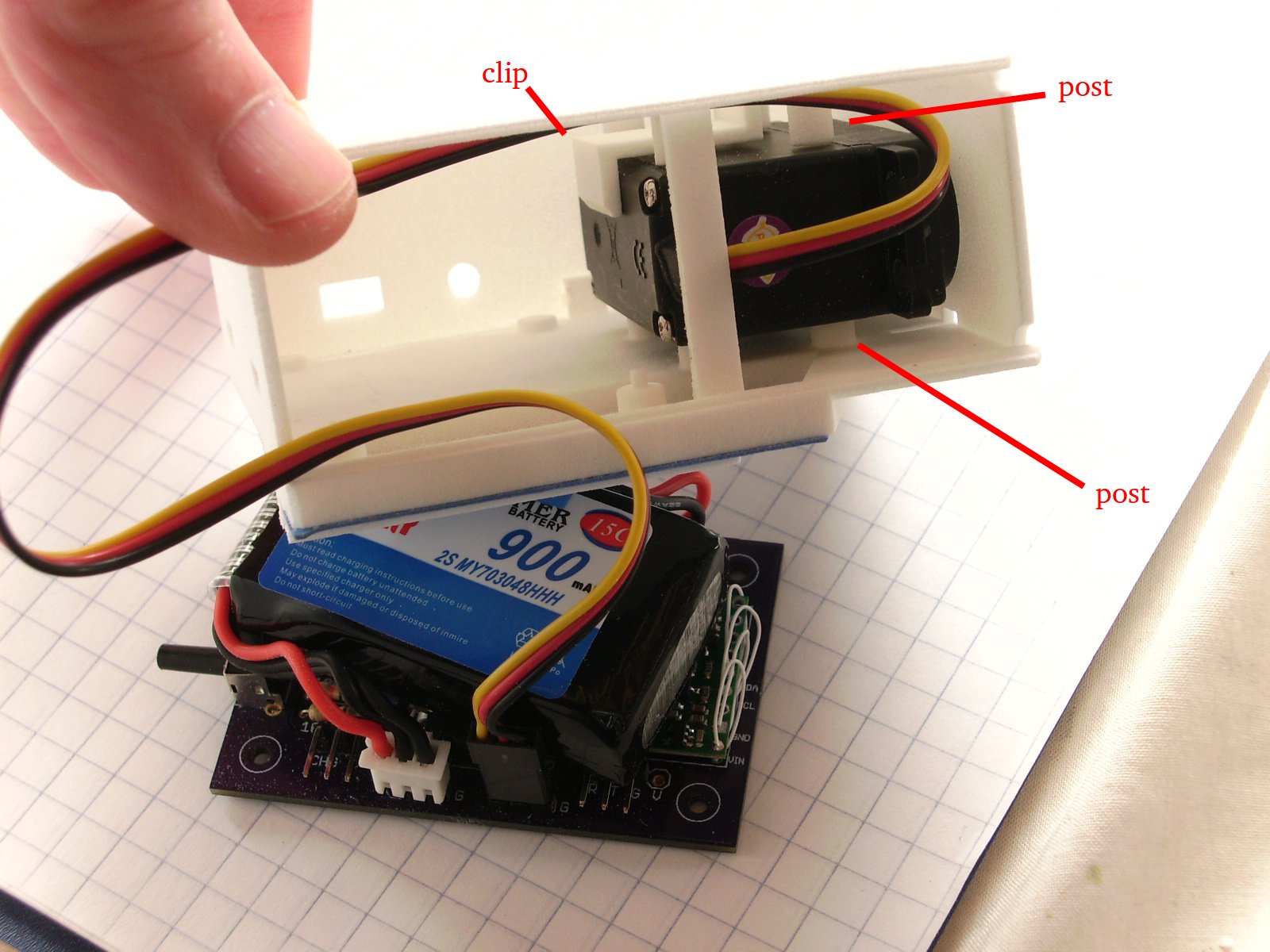

The servo is held in place by 8 posts and a clip. The exit hole fixes the servo's output shaft to ensure proper alignment of the drive gears:

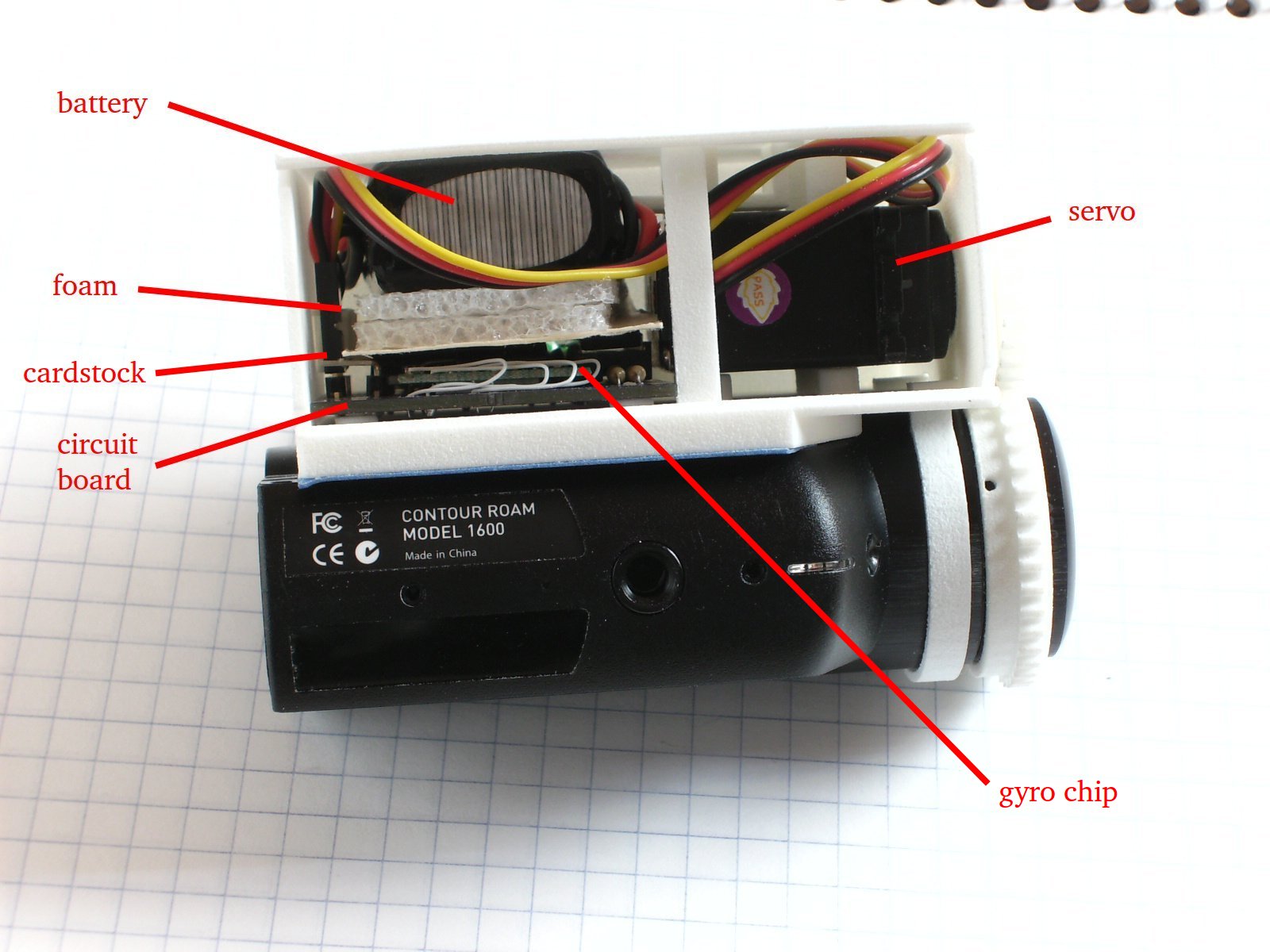

The circuit board is also aligned and held in place by posts. Foam packing keeps things from moving around. A shim of cardstock prevents the foam from pressing on the gyro chip. It's a tight fit:

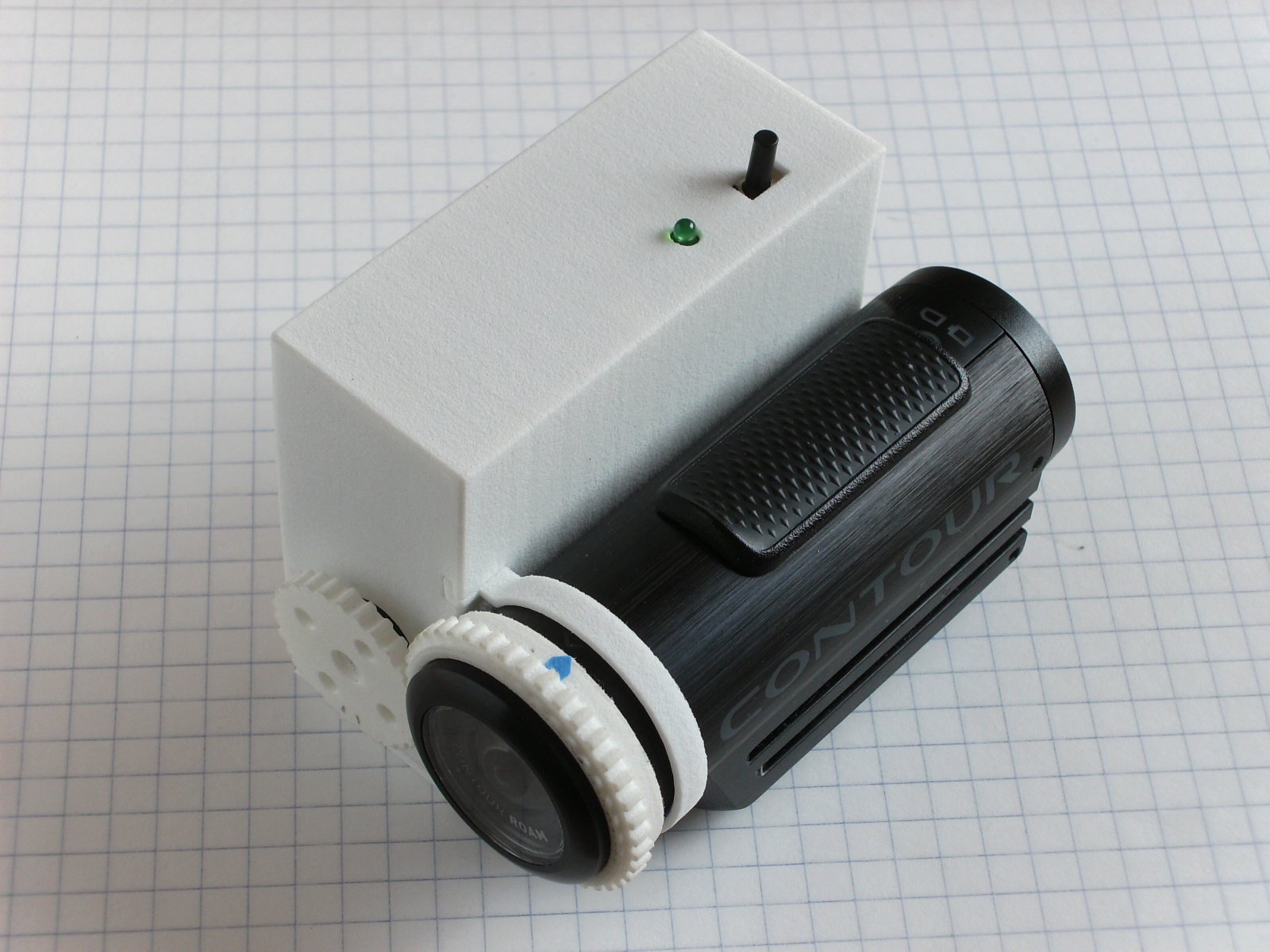

Fully assembled:





Last updated 20 May 2013
