Camera Modification

The following sequence of pictures shows how to remove the clickers and water/dust seal from the lens barrel of the ContourROAM camera. This allows the lens to rotate freely without stalling the servo.

Caution: the lens barrel is connected to the camera via a delicate ribbon cable and ground wire. Don't pull the barrel out any further than needed to expose the rubber seal. Any further and you risk damaging the cable / connector.

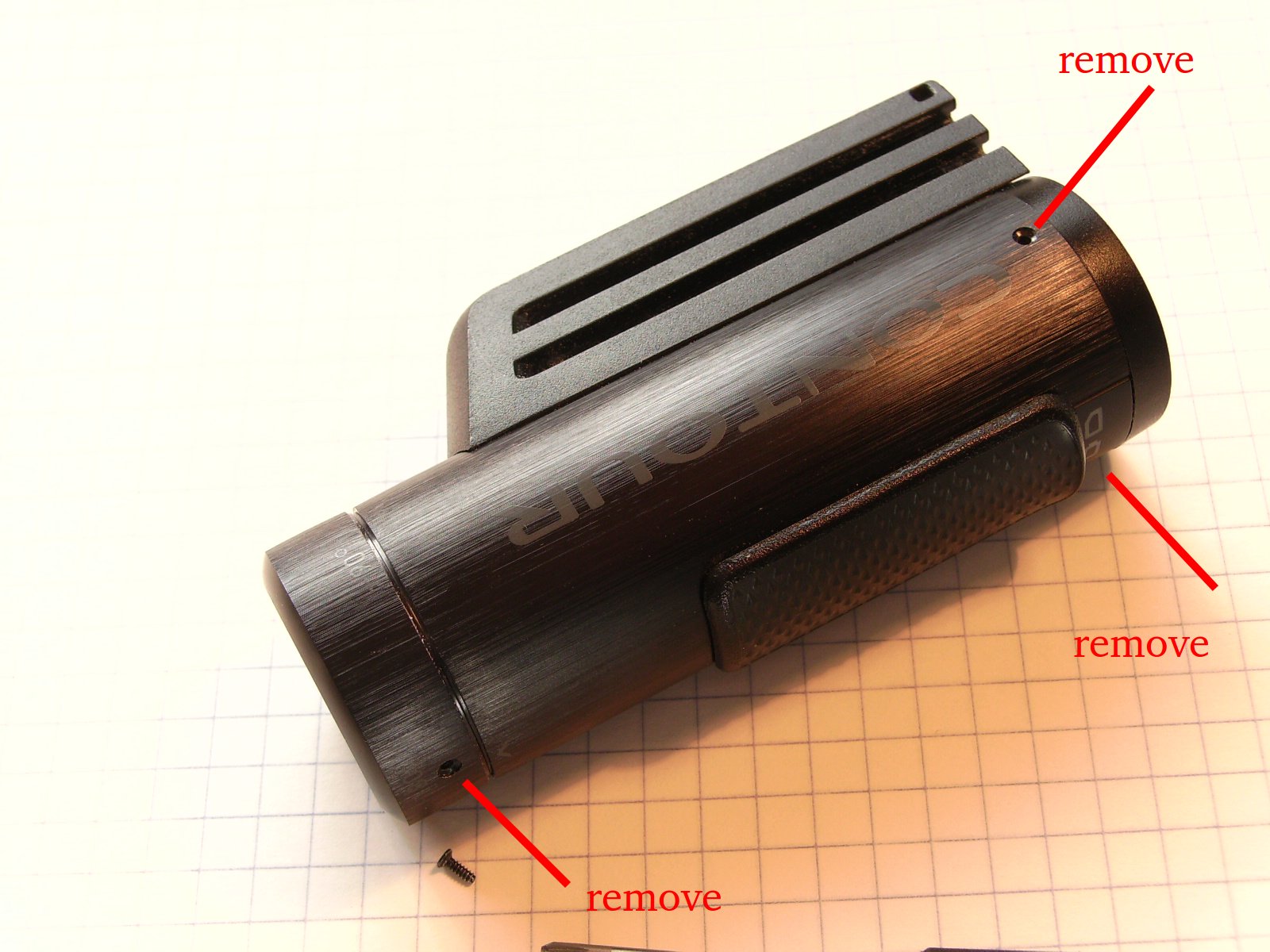

Remove the three screws:

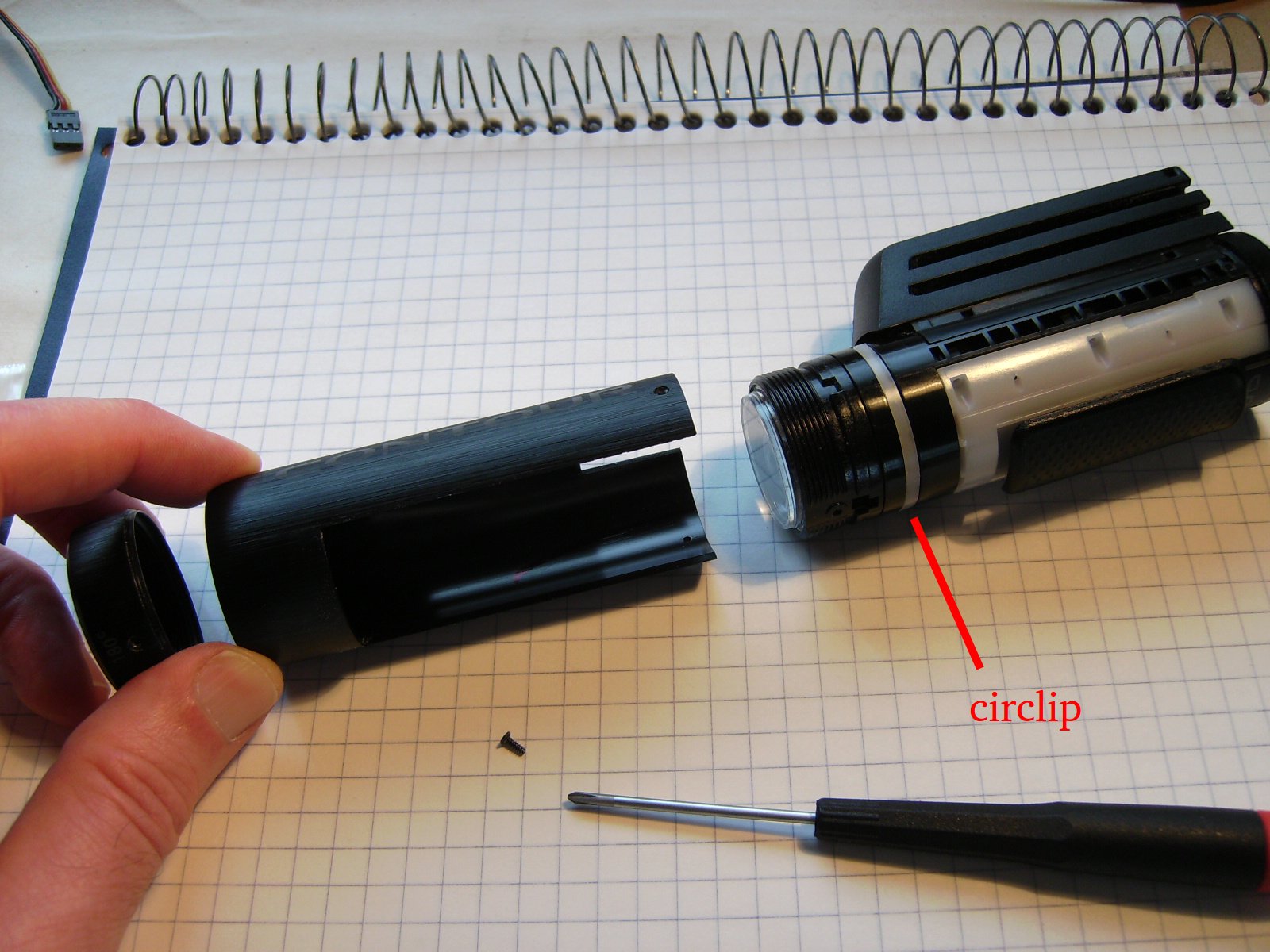

Unscrew the lens cover and slide off the barrel cover:

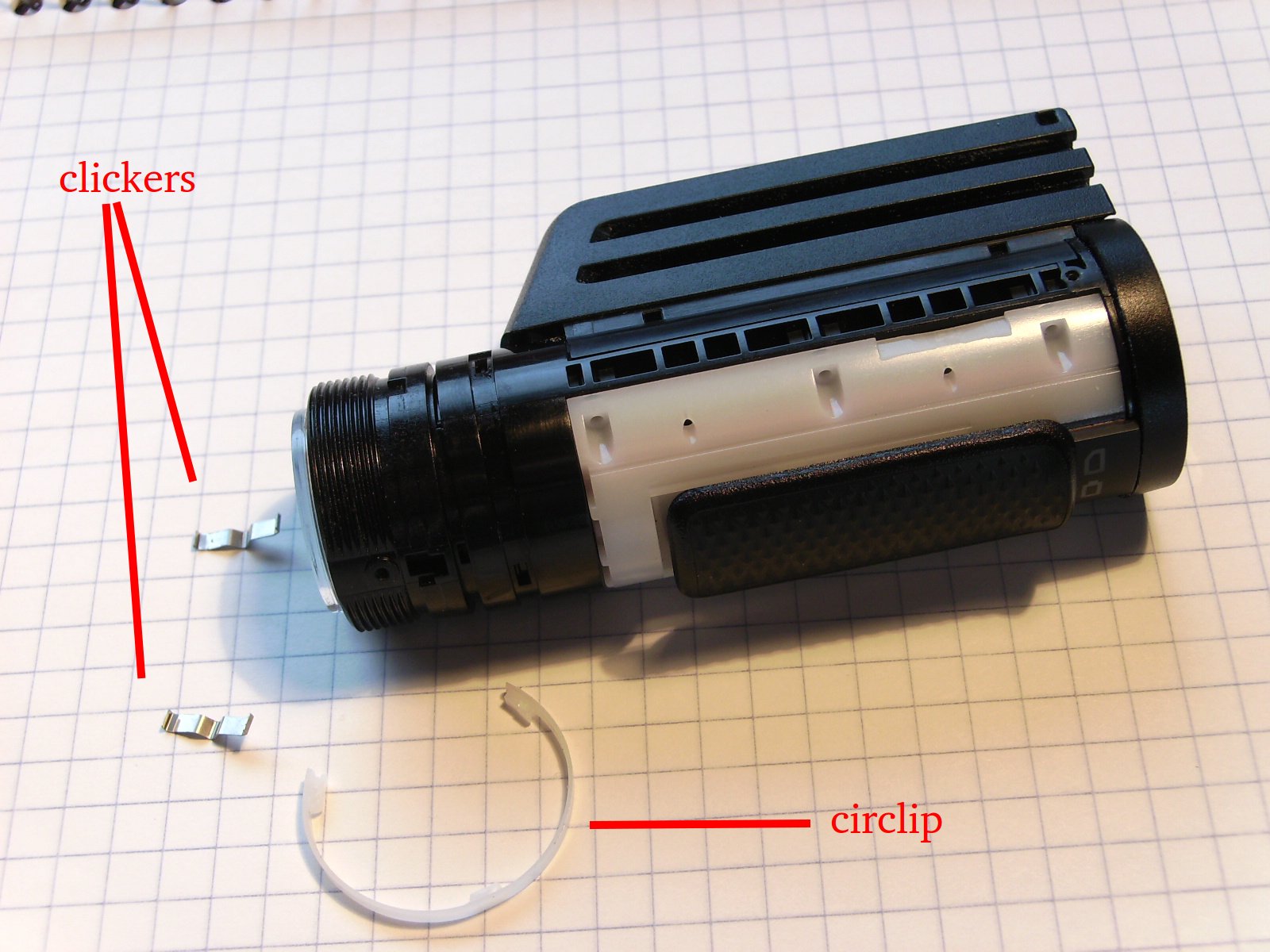

Remove the metal clickers and nylon circlip:

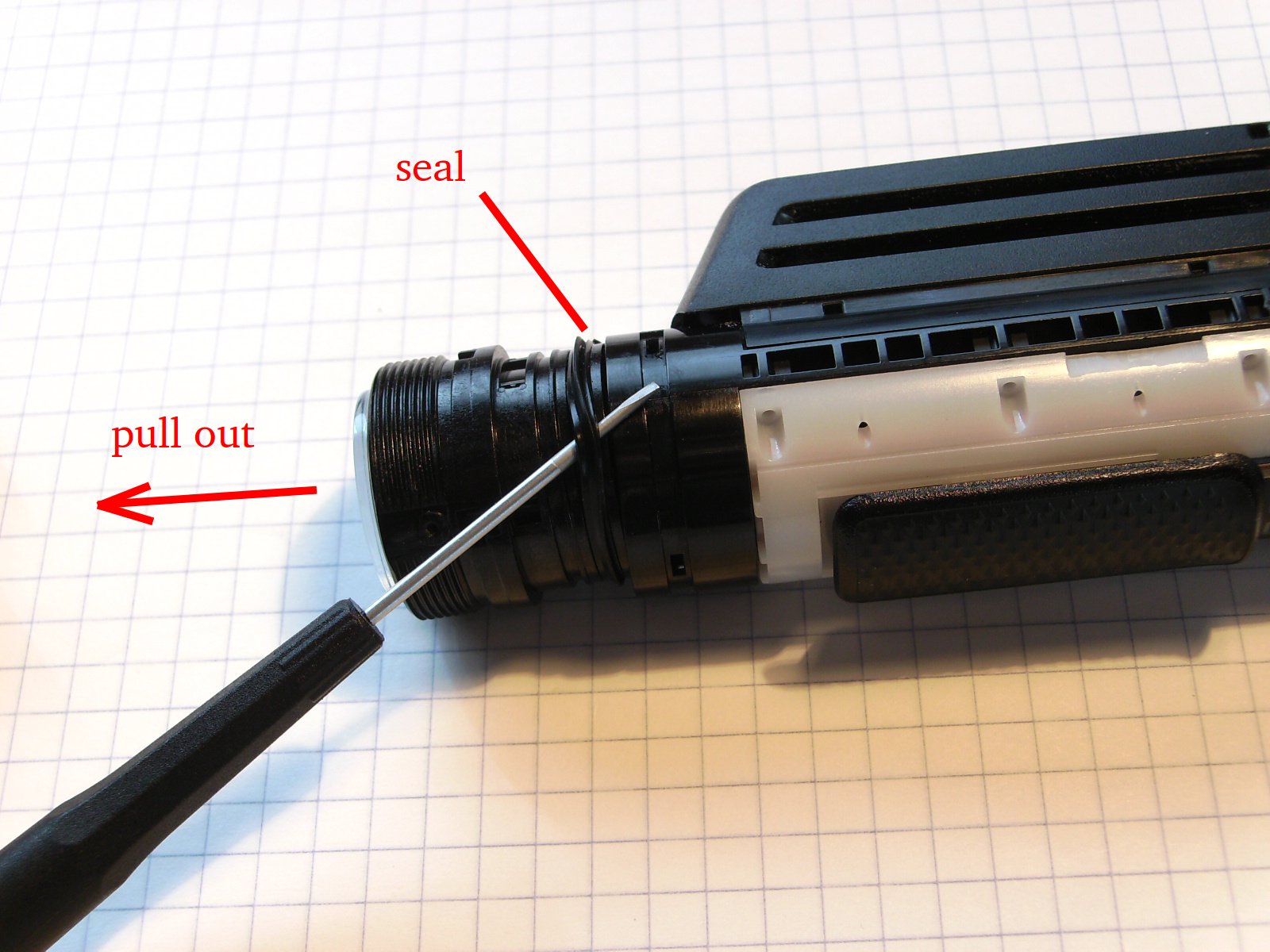

Slowly pull out the lens barrel far enough to expose the rubber seal:

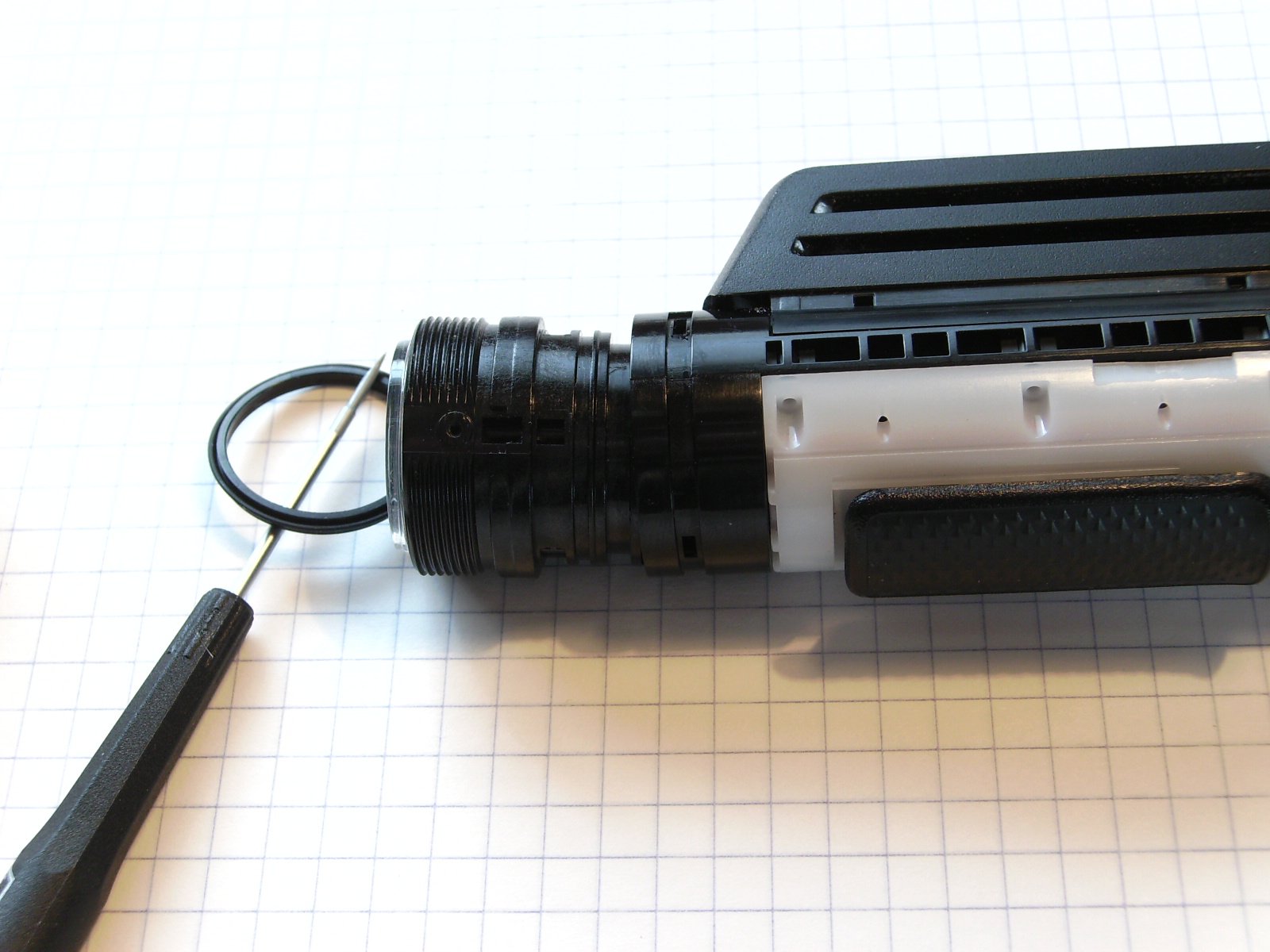

Remove the seal:

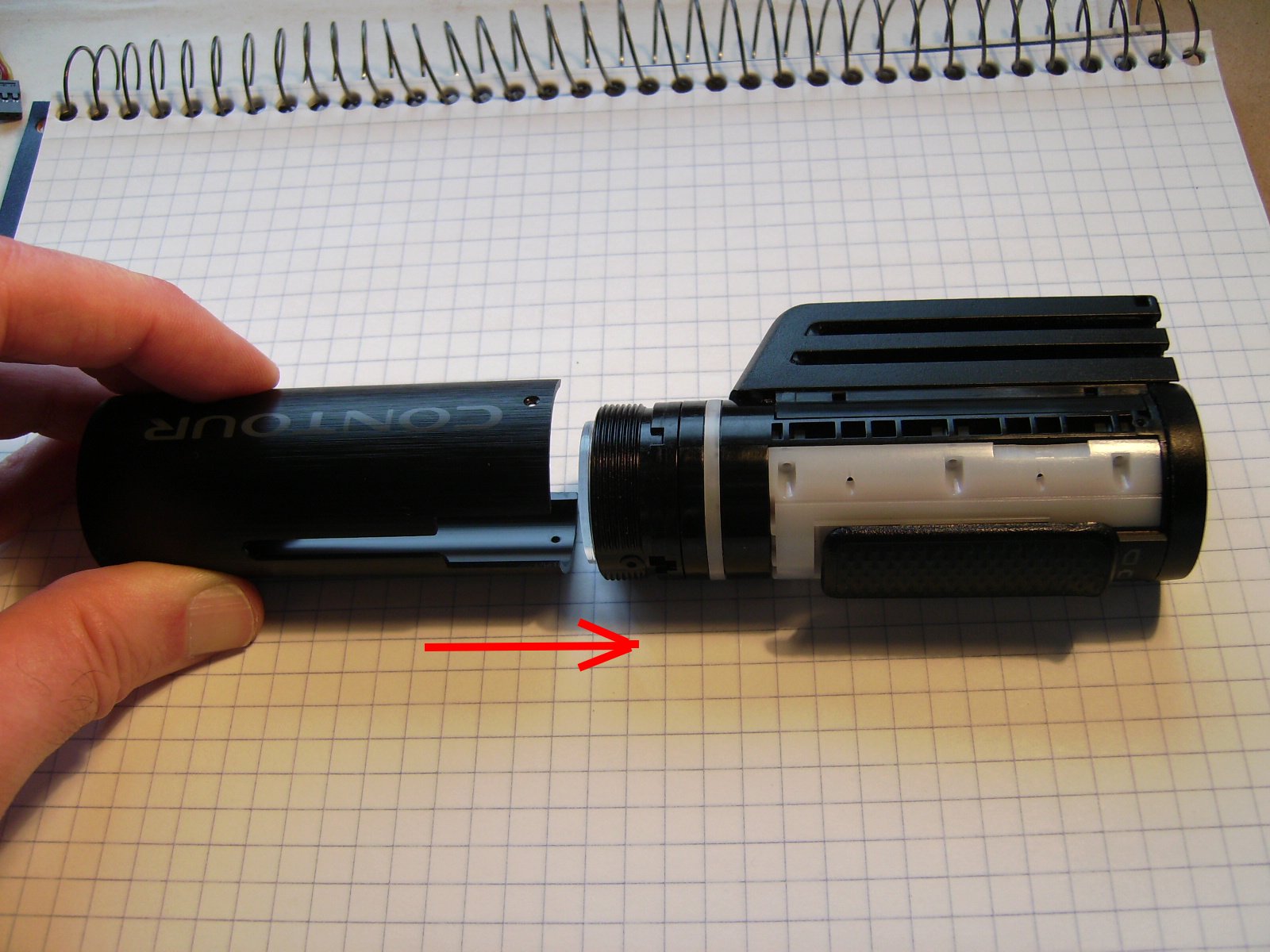

Reassemble in reverse order of disassembly:


Last updated 28 Feb 2013
